Overview of Spiral Weld Pipe with Clutch

A Spiral Weld Pipe with Clutch is a specialized steel pipe designed for foundation piling applications, particularly in marine construction, cofferdams, and retaining walls. The clutch system allows for interlocking multiple pipes to form a continuous barrier or foundation support, ensuring structural stability and resistance to soil and water pressure.

Key Features of Spiral Weld Pipe with Clutch

✔ High-strength steel construction for deep foundation applications
✔ Interlocking clutch system for seamless connection
✔ Ideal for cofferdams, retaining walls, and marine piling
✔ Available in various diameters, thicknesses, and steel grades
✔ Coated for corrosion resistance in harsh environments

This guide will cover everything about Spiral Weld Pipes with Clutch, including manufacturing processes, specifications, applications, price trends, and suppliers.

Top Manufacturers of Spiral Weld Pipe with Clutch in 2025

Choosing a reliable manufacturer ensures precision engineering, high-quality materials, and compliance with global standards. Below are some of the leading manufacturers of Spiral Weld Pipe with Clutch:

1. Cangzhou Spiral Steel Pipes Group Co., Ltd

✔ 27 years of experience in steel pipe manufacturing
✔ 13 production lines for Φ219–Φ3500mm spiral welded pipes
✔ Annual production capacity: 400,000 tons
✔ ISO 9001, API 5L, ASTM-certified pipes
✔ Custom clutch designs for piling and retaining wall applications

2. Nippon Steel (Japan)

A global leader in high-strength, corrosion-resistant spiral welded pipes for marine and foundation applications.

3. Jindal SAW Ltd (India)

A major supplier of spiral welded pipes with clutch systems for deep foundation piling and infrastructure projects.

4. Baosteel Group (China)

A leading steel producer specializing in customized spiral welded pipes for retaining walls and cofferdams.

5. Tenaris (Global)

A world-class manufacturer offering high-performance clutch interlocking pipes for offshore and industrial piling applications.

Each of these manufacturers ensures strict compliance with industry standards, guaranteeing high durability and performance.

Spiral Weld Pipe with Clutch vs Other Piling Solutions

Selecting the right piling solution depends on load-bearing capacity, ease of installation, and environmental conditions. Below is a comparison between Spiral Weld Pipe with Clutch and other piling materials:

Feature	Spiral Weld Pipe with Clutch	Sheet Piles	H-Beams	Concrete Piles
Load-bearing Capacity	High	Medium	Medium	Very High
Interlocking System	Yes (Clutch)	Yes	No	No
Corrosion Resistance	High (with coating)	Moderate	Moderate	High
Best Use Case	Cofferdams, retaining walls, marine piling	Flood control, seawalls	Building foundations	High-rise buildings

Why Choose Spiral Weld Pipe with Clutch?

✔ Stronger and more stable than sheet piles
✔ Easier to install and adjust than concrete piles
✔ Interlocking clutch system ensures seamless connection
✔ Customizable for marine and underground applications

Spiral Weld Pipe with Clutch Price Per Ton in 2025

The price of Spiral Weld Pipe with Clutch varies based on factors such as pipe diameter, wall thickness, steel grade, and coatings. Below is an estimated pricing chart for 2025:

Pipe Diameter (mm)	Wall Thickness (mm)	Steel Grade	Price Per Ton (USD)
219 – 600	6 – 10	ASTM A252, API 5L B	1,200−1,200 – 1,200−1,800
610 – 1200	8 – 14	X42 – X60	1,700−1,700 – 1,700−2,500
1220 – 1800	10 – 18	X65 – X80	2,300−2,300 – 2,300−3,200
2000 – 3500	12 – 25	X80 – X100	3,000−3,000 – 3,000−4,500

Factors Affecting Price:

✔ Steel Grade – Higher-strength grades (X65, X80) cost more.
✔ Pipe Diameter & Wall Thickness – Larger and thicker pipes require more material.
✔ Clutch Type – Custom clutch designs may increase costs.
✔ Coating Type – 3LPE, FBE, and other coatings increase costs.
✔ Bulk Orders – Large quantity orders receive better pricing.

Cangzhou Spiral Steel Pipes Group offers high-quality Spiral Weld Pipes with Clutch at competitive prices.

Spiral Weld Pipe with Clutch Manufacturing Process & Quality Control

How Are Spiral Weld Pipes with Clutch Manufactured?

The manufacturing process of Spiral Weld Pipe with Clutch is designed to meet the structural demands of deep foundation piling projects. Below is a step-by-step breakdown of how these specialized pipes are produced:

1. Raw Material Selection

• High-quality hot-rolled steel coils or plates are selected based on ASTM A252, API 5L, or EN standards.
• The steel undergoes chemical composition analysis to ensure uniform mechanical properties.

2. Pipe Forming & Spiral Welding

• The steel plate is formed into a spiral shape using specialized rolling machines.
• The edges are submerged arc welded (SAW) to create a continuous, high-strength weld seam.
• The welding process ensures full penetration and defect-free welds.

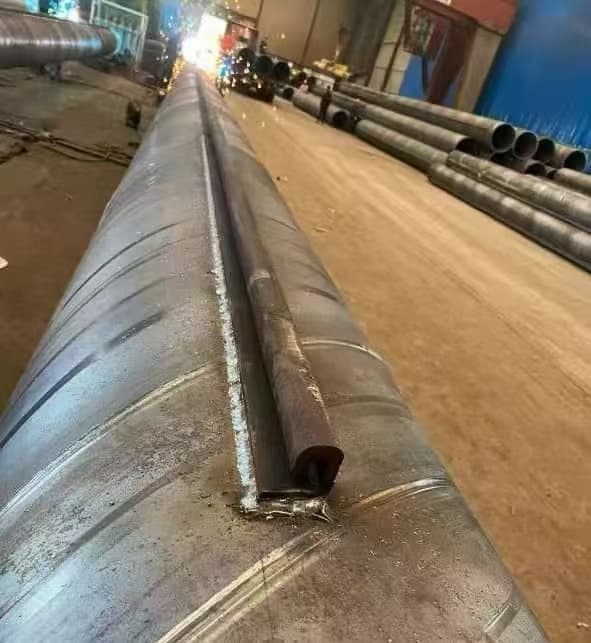

3. Clutch Installation

• Clutch interlocking systems are welded onto the pipe ends to allow seamless interconnection.
• The clutches are precisely aligned to ensure tight-fitting, structurally sound connections.

4. Heat Treatment & Strength Testing

• Pipes undergo heat treatment to improve tensile strength and load-bearing capacity.
• Each pipe is tested for bending strength, impact resistance, and structural integrity.

5. Hydrostatic Pressure Testing

• Each pipe undergoes high-pressure water testing to verify leak-proof and structural performance.

6. Ultrasonic & Radiographic Testing

• Non-destructive testing (NDT) is performed to detect internal or external defects in the weld seam.
• Ultrasonic, X-ray, and magnetic particle testing are used based on pipe grade and project requirements.

7. Coating & Anti-Corrosion Treatment

• Pipes can be coated with 3LPE, FBE, Epoxy Coal Tar, or Polyurethane coatings to enhance corrosion resistance.

8. Final Inspection & Packaging

• Pipes are marked, inspected, and bundled according to customer requirements.
• Each pipe is labeled with batch numbers, specifications, and manufacturer details for full traceability.

Why Spiral Weld Pipes with Clutch Are Preferred?

✔ Designed for deep foundation piling and high-load applications
✔ Interlocking clutch system ensures seamless connection
✔ Available in large diameters for marine and underground applications
✔ Custom coatings available to extend lifespan in corrosive environments

Cangzhou Spiral Steel Pipes Group Co., Ltd follows strict quality control procedures to ensure high-performance Spiral Weld Pipes with Clutch.

Spiral Weld Pipe with Clutch Applications & Industry Uses

Where Are Spiral Weld Pipes with Clutch Used?

Spiral Weld Pipes with Clutch are widely used in marine, infrastructure, and deep foundation projects that require structural stability and water-tight barriers.

Industry	Application	Why Spiral Weld Pipe with Clutch?
Marine & Offshore	Harbor walls, dock foundations, and offshore platforms	High resistance to seawater and extreme marine conditions
Cofferdams & Retaining Walls	Temporary and permanent retaining structures	Interlocking system ensures structural integrity
Bridge Construction	Bridge foundations & support columns	High-strength steel with corrosion protection
Flood Control & Riverbanks	Riverbank protection & flood barriers	Leak-proof, durable, and resistant to soil erosion
Oil & Gas Industry	Offshore drilling platforms & pipeline support	Withstands extreme pressure and environmental exposure

Why Spiral Weld Pipes with Clutch Are Ideal for Marine & Offshore Foundations?

✔ High resistance to seawater corrosion
✔ Available in long lengths for deep-water applications
✔ Can be coated with 3LPE or Epoxy Coal Tar for extended durability

Cangzhou Spiral Steel Pipes Group supplies customized Spiral Weld Pipes with Clutch for cofferdams, marine piling, retaining walls, and deep foundation projects.

Spiral Weld Pipe with Clutch Coating & Anti-Corrosion Treatment

To ensure long-lasting performance, Spiral Weld Pipes with Clutch can be coated with various anti-corrosion treatments.

Coating Type	Corrosion Resistance	Best Applications
3LPE Coating	Very High	Marine foundations, offshore platforms
FBE (Fusion Bonded Epoxy) Coating	High	Bridge foundations, water pipelines
Epoxy Coal Tar Coating	Excellent	Industrial piling & chemical plants
Polyurethane Coating	High	Offshore drilling & marine structures

Why Coating is Essential for Spiral Weld Pipes with Clutch?

✔ Prevents rust and corrosion in marine and underground environments
✔ Reduces maintenance costs and extends service life
✔ Enhances resistance against chemicals, seawater, and extreme temperatures

Cangzhou Spiral Steel Pipes Group provides custom coating services to meet industry-specific requirements.

Spiral Weld Pipe with Clutch Suppliers & Exporters

If you are looking to import Spiral Weld Pipes with Clutch, working with a reliable supplier ensures quality, competitive pricing, and timely delivery.

Top Chinese Exporters of Spiral Weld Pipes with Clutch

Company Name	Location	Annual Production Capacity
Cangzhou Spiral Steel Pipes Group Co., Ltd	Hebei, China	400,000 tons
Baosteel Group	Shanghai, China	500,000+ tons
Tianjin Steel Pipe Co.	Tianjin, China	300,000 tons

Why Choose Cangzhou Spiral Steel Pipes Group for Spiral Weld Pipes with Clutch?

✔ 27 years of experience in steel pipe manufacturing
✔ ISO 9001, API 5L, and ASTM-certified products
✔ 13 production lines, covering diameters from 219mm to 3500mm
✔ Custom clutch designs and anti-corrosion treatments available
✔ Strong export network to North America, Europe, and Asia

For high-quality Spiral Weld Pipes with Clutch, Cangzhou Spiral Steel Pipes Group Co., Ltd is a trusted supplier.

FAQ: Spiral Weld Pipe with Clutch

Question	Answer
What is a Spiral Weld Pipe with Clutch used for?	Used for cofferdams, marine piling, retaining walls, and foundation support.
How does it compare to Sheet Piles?	Stronger and more stable, with a better load-bearing capacity.
What is the lifespan of a Spiral Weld Pipe with Clutch?	50-100 years, depending on coating and environmental conditions.
Who is the best supplier?	Cangzhou Spiral Steel Pipes Group Co., Ltd is a leading supplier with ISO & API-certified products.
What is the price per ton in 2025?	Prices range from 1,200to1,200 to 1,200to4,500 per ton, depending on size and steel grade.
Can Spiral Weld Pipes with Clutch be used in marine environments?	Yes, they are widely used in offshore and harbor foundation projects.
What coatings are available?	3LPE, FBE, Epoxy Coal Tar, and Polyurethane coatings.
Are these pipes suitable for seismic zones?	Yes, they provide excellent support for earthquake-resistant structures.

Final Thoughts

Spiral Weld Pipes with Clutch are essential for cofferdams, marine piling, retaining walls, and deep foundation structures. They offer high strength, corrosion resistance, and long-term durability, making them ideal for challenging environments.

For premium quality Spiral Weld Pipes with Clutch, Cangzhou Spiral Steel Pipes Group Co., Ltd is your best choice in 2025!

Need a quote or more technical details? Contact Cangzhou Spiral Steel Pipes Group today!
